tc_mux_v2_testing.h File Reference

#include "TorqueControllerMux.h"
#include "TorqueControllers.h"
#include "fake_controller_type.h"
#include "gtest/gtest.h"

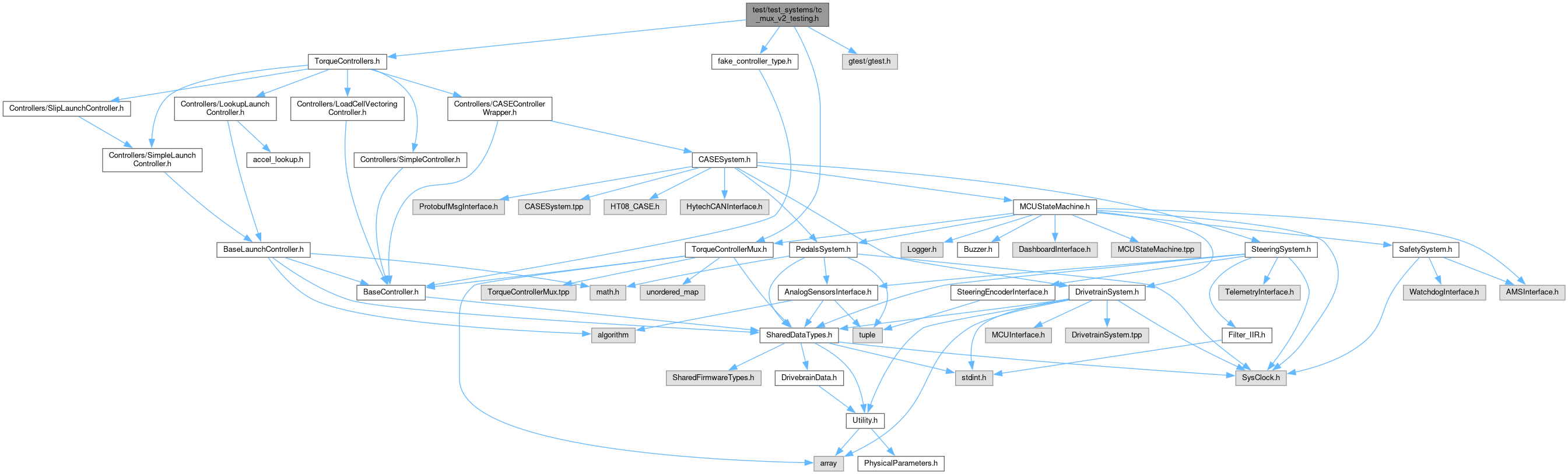

Include dependency graph for tc_mux_v2_testing.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
template<typename quad_array_type >
void	set_four_outputs (quad_array_type &out, float val)
template<typename controller_type >
void	set_outputs (controller_type &controller, float mps, float torque)
template<typename controller_type >
void	set_output_rpm (controller_type &controller, float rpm, float torque)
	TEST (TorqueControllerMuxTesting, test_construction)
	TEST (TorqueControllerMuxTesting, test_invalid_controller_request_error)
	TEST (TorqueControllerMuxTesting, test_controller_output_swap_logic)
	TEST (TorqueControllerMuxTesting, test_torque_diff_swap_limit)
	TEST (TorqueControllerMuxTesting, test_construction_with_new_controller_orgs)
	TEST (TorqueControllerMuxTesting, test_mode0_evaluation)
	TEST (TorqueControllerMuxTesting, test_power_limit)
	TEST (TorqueControllerMuxTesting, test_torque_limit)
	TEST (TorqueControllerMuxTesting, test_null_pointer_error_state)

Function Documentation

set_four_outputs()

template<typename quad_array_type >

void set_four_outputs	(	quad_array_type &	out,
		float	val
	)

Definition at line 14 of file tc_mux_v2_testing.h.

{
    out[0] = val;
    out[1] = val;
    out[2] = val;
    out[3] = val;
}

set_output_rpm()

template<typename controller_type >

void set_output_rpm	(	controller_type &	controller,
		float	rpm,
		float	torque
	)

Definition at line 35 of file tc_mux_v2_testing.h.

{
    controller.output.command.speeds_rpm[0] = rpm;
    controller.output.command.speeds_rpm[1] = rpm;
    controller.output.command.speeds_rpm[2] = rpm;
    controller.output.command.speeds_rpm[3] = rpm;
    controller.output.command.inverter_torque_limit[0] = torque;
    controller.output.command.inverter_torque_limit[1] = torque;
    controller.output.command.inverter_torque_limit[2] = torque;
    controller.output.command.inverter_torque_limit[3] = torque;
}

set_outputs()

template<typename controller_type >

void set_outputs	(	controller_type &	controller,
		float	mps,
		float	torque
	)

Definition at line 23 of file tc_mux_v2_testing.h.

{
    controller.output.command.speeds_rpm[0] = METERS_PER_SECOND_TO_RPM * mps;
    controller.output.command.speeds_rpm[1] = METERS_PER_SECOND_TO_RPM * mps;
    controller.output.command.speeds_rpm[2] = METERS_PER_SECOND_TO_RPM * mps;
    controller.output.command.speeds_rpm[3] = METERS_PER_SECOND_TO_RPM * mps;
    controller.output.command.inverter_torque_limit[0] = torque;
    controller.output.command.inverter_torque_limit[1] = torque;
    controller.output.command.inverter_torque_limit[2] = torque;
    controller.output.command.inverter_torque_limit[3] = torque;
}

TEST() [1/9]

TEST	(	TorqueControllerMuxTesting	,
		test_construction
	)

Definition at line 46 of file tc_mux_v2_testing.h.

{
    TestControllerType inst1, inst2;
    TorqueControllerMux<2> test({static_cast<Controller *>(&inst1), static_cast<Controller *>(&inst2)}, {false, false});
}

TEST() [2/9]

TEST	(	TorqueControllerMuxTesting	,
		test_construction_with_new_controller_orgs
	)

Definition at line 132 of file tc_mux_v2_testing.h.

{
    // mode 0
    TorqueControllerSimple tc_simple(1.0f, 1.0f);
    // mode 1
    TorqueControllerLoadCellVectoring tc_vec;
    // mode 2
    DummyQueue_s q;
    CASESystem<DummyQueue_s> case_sys(&q, 100, 70, 550, {});
    TorqueControllerCASEWrapper<DummyQueue_s> case_wrapper(&case_sys);

    // mode 3
    TorqueControllerSimpleLaunch simple_launch;
    // mode 4
    TorqueControllerSlipLaunch slip_launch;

    TorqueControllerMux<5>
        torque_controller_mux({static_cast<Controller *>(&tc_simple),
                               static_cast<Controller *>(&tc_vec),
                               static_cast<Controller *>(&case_wrapper),
                               static_cast<Controller *>(&simple_launch),
                               static_cast<Controller *>(&slip_launch)},
                              {false, false, true, false, false});
}

TEST() [3/9]

TEST	(	TorqueControllerMuxTesting	,
		test_controller_output_swap_logic
	)

Definition at line 71 of file tc_mux_v2_testing.h.

{
    TestControllerType inst1, inst2;
    set_outputs(inst1, 0, 1);
    set_outputs(inst2, 6, 1);
    TorqueControllerMux<2> test({static_cast<Controller *>(&inst1), static_cast<Controller *>(&inst2)}, {false, false});
    SharedCarState_s state({}, {}, {}, {}, {}, {}, {}, {});
    set_four_outputs(state.drivetrain_data.measuredSpeeds, 10000.0);

    state.pedals_data = {};
    state.vn_data = {};

    auto out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, state);

    // auto out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);

    ASSERT_EQ(test.get_tc_mux_status().active_controller_mode, ControllerMode_e::MODE_0);
    ASSERT_EQ(test.get_tc_mux_status().active_error, TorqueControllerMuxError::ERROR_SPEED_DIFF_TOO_HIGH);

    set_outputs(inst1, 0, 1);
    set_outputs(inst2, 0, 1);
    set_four_outputs(state.drivetrain_data.measuredSpeeds, 0);

    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);

    ASSERT_EQ(test.get_tc_mux_status().active_controller_mode, ControllerMode_e::MODE_1);
    ASSERT_EQ(test.get_tc_mux_status().active_error, TorqueControllerMuxError::NO_ERROR);
}

TEST() [4/9]

TEST	(	TorqueControllerMuxTesting	,
		test_invalid_controller_request_error
	)

Definition at line 52 of file tc_mux_v2_testing.h.

{
    TestControllerType inst1, inst2;
    TorqueControllerMux<2> test({static_cast<Controller *>(&inst1), static_cast<Controller *>(&inst2)}, {false, false});
    SharedCarState_s state({}, {}, {}, {}, {}, {}, {}, {});
    auto res = test.getDrivetrainCommand(ControllerMode_e::MODE_2, TorqueLimit_e::TCMUX_FULL_TORQUE, state);

    ASSERT_EQ(test.get_tc_mux_status().active_error, TorqueControllerMuxError::ERROR_CONTROLLER_INDEX_OUT_OF_BOUNDS);
    for (int i =0; i< 4; i++)
    {

        ASSERT_EQ(res.speeds_rpm[i], 0.0);
        ASSERT_EQ(res.inverter_torque_limit[i], 0.0);
    }
}

TEST() [5/9]

TEST	(	TorqueControllerMuxTesting	,
		test_mode0_evaluation
	)

Definition at line 157 of file tc_mux_v2_testing.h.

{

    float max_torque = 21.42;
    // mode 0
    TorqueControllerSimple tc_simple(1.0f, 1.0f);
    // mode 1
    TorqueControllerLoadCellVectoring tc_vec;
    // mode 2
    DummyQueue_s q;
    CASESystem<DummyQueue_s> case_sys(&q, 100, 70, 550, {});
    TorqueControllerCASEWrapper<DummyQueue_s> case_wrapper(&case_sys);

    // mode 3
    TorqueControllerSimpleLaunch simple_launch;
    // mode 4
    TorqueControllerSlipLaunch slip_launch;
    TorqueControllerMux<5> torque_controller_mux({static_cast<Controller *>(&tc_simple),
                                                  static_cast<Controller *>(&tc_vec),
                                                  static_cast<Controller *>(&case_wrapper),
                                                  static_cast<Controller *>(&simple_launch),
                                                  static_cast<Controller *>(&slip_launch)},
                                                 {false, true, false, false, false});
    SharedCarState_s mode_0_input_state({}, {}, {}, {}, {.accelPercent = 0.5f, .brakePercent = 0.0f, .regenPercent = 0.0}, {}, {}, {});

    DrivetrainCommand_s out = torque_controller_mux.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, mode_0_input_state);
    ASSERT_NEAR(out.inverter_torque_limit[0], (max_torque / 2), 0.01);
    ASSERT_NEAR(out.inverter_torque_limit[1], (max_torque / 2), 0.01);
    ASSERT_NEAR(out.inverter_torque_limit[2], (max_torque / 2), 0.01);
    ASSERT_NEAR(out.inverter_torque_limit[3], (max_torque / 2), 0.01);

    mode_0_input_state = {{}, {}, {}, {}, {.accelPercent = 0.0f, .brakePercent = 0.0f, .regenPercent = 0.0}, {}, {}, {}};
    out = torque_controller_mux.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, mode_0_input_state);
    ASSERT_EQ(out.inverter_torque_limit[0], 0);
    ASSERT_EQ(out.inverter_torque_limit[1], 0);
    ASSERT_EQ(out.inverter_torque_limit[2], 0);
    ASSERT_EQ(out.inverter_torque_limit[3], 0);

    // out = torque_controller_mux.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, mode_1_input_state);
}

TEST() [6/9]

TEST	(	TorqueControllerMuxTesting	,
		test_null_pointer_error_state
	)

Definition at line 272 of file tc_mux_v2_testing.h.

{
    TorqueControllerMux<1> test({nullptr}, {true});
    SharedCarState_s state({}, {}, {}, {}, {}, {}, {}, {});
    auto res = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_LOW_TORQUE, state);
    for (int i = 0; i < 4; i++)
    {
        ASSERT_EQ(res.inverter_torque_limit[i], 0.0f);
        ASSERT_EQ(res.speeds_rpm[i], 0.0f);
    }
    ASSERT_EQ(test.get_tc_mux_status().active_error, TorqueControllerMuxError::ERROR_CONTROLLER_NULL_POINTER);
}

TEST() [7/9]

TEST	(	TorqueControllerMuxTesting	,
		test_power_limit
	)

Definition at line 198 of file tc_mux_v2_testing.h.

{
    TestControllerType inst1;
    set_output_rpm(inst1, 20000, 10.0);
    TorqueControllerMux<1> test({static_cast<Controller *>(&inst1)}, {false});

    DrivetrainDynamicReport_s drivetrain_data = {};
    for (int i = 0; i < 4; i++)
    {
        drivetrain_data.measuredSpeeds[i] = 500.0f;
    }
    SharedCarState_s mode_0_input_state({}, {}, drivetrain_data, {}, {.accelPercent = 0.5f, .brakePercent = 0.0f, .regenPercent = 0.0}, {}, {} , {});

    DrivetrainCommand_s res = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, mode_0_input_state);

    for (int i = 0; i < 4; i++)
    {
        ASSERT_EQ(res.inverter_torque_limit[i], 10.0f);
    }
    for (int i = 0; i < 4; i++)
    {
        drivetrain_data.measuredSpeeds[i] = 20000.0f;
    }
    set_output_rpm(inst1, 20000, 21.0);

    SharedCarState_s mode_0_input_state_high_power({}, {}, drivetrain_data, {}, {.accelPercent = 1.0f, .brakePercent = 0.0f, .regenPercent = 0.0}, {}, {}, {});
    res = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, mode_0_input_state_high_power);

    for (int i = 0; i < 4; i++)
    {
        ASSERT_LT(res.inverter_torque_limit[i], 7.6); // hardcoded value based on online calculator
    }
}

TEST() [8/9]

TEST	(	TorqueControllerMuxTesting	,
		test_torque_diff_swap_limit
	)

Definition at line 101 of file tc_mux_v2_testing.h.

{
    TestControllerType inst1, inst2;
    set_outputs(inst1, 0.1, 1);
    set_outputs(inst2, 3, 10);
    TorqueControllerMux<2> test({static_cast<Controller *>(&inst1), static_cast<Controller *>(&inst2)}, {false, false});
    SharedCarState_s state({}, {}, {}, {}, {}, {}, {}, {});

    auto out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    ASSERT_EQ(test.get_tc_mux_status().active_controller_mode, ControllerMode_e::MODE_0);
    ASSERT_EQ(test.get_tc_mux_status().active_error, TorqueControllerMuxError::ERROR_TORQUE_DIFF_TOO_HIGH);

    // tick it a bunch of times
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);
    out1 = test.getDrivetrainCommand(ControllerMode_e::MODE_1, TorqueLimit_e::TCMUX_FULL_TORQUE, state);

    ASSERT_EQ(test.get_tc_mux_status().active_error, TorqueControllerMuxError::ERROR_TORQUE_DIFF_TOO_HIGH);

    ASSERT_EQ(test.get_tc_mux_status().active_controller_mode, ControllerMode_e::MODE_0);

    ASSERT_EQ(out1.inverter_torque_limit[0], 1);
    ASSERT_EQ(out1.inverter_torque_limit[1], 1);
    ASSERT_EQ(out1.inverter_torque_limit[2], 1);
    ASSERT_EQ(out1.inverter_torque_limit[3], 1);
}

TEST() [9/9]

TEST	(	TorqueControllerMuxTesting	,
		test_torque_limit
	)

Definition at line 232 of file tc_mux_v2_testing.h.

{

    TestControllerType inst1;

    set_output_rpm(inst1, 500, 10.0);
    inst1.output.command.inverter_torque_limit[0] = 5;
    TorqueControllerMux<1> test({static_cast<Controller *>(&inst1)}, {false});

    DrivetrainDynamicReport_s drivetrain_data = {};
    for (int i = 0; i < 4; i++)
    {
        drivetrain_data.measuredSpeeds[i] = 500.0f;
    }

    SharedCarState_s mode_0_input_state({}, {}, drivetrain_data, {}, {.accelPercent = 0.5f, .brakePercent = 0.0f, .regenPercent = 0.0}, {}, {}, {});

    auto drive_command = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_LOW_TORQUE, mode_0_input_state);

    ASSERT_EQ(drive_command.inverter_torque_limit[0], 5.0f);
    ASSERT_EQ(drive_command.inverter_torque_limit[1], 10.0f);
    ASSERT_EQ(drive_command.inverter_torque_limit[2], 10.0f);
    ASSERT_EQ(drive_command.inverter_torque_limit[3], 10.0f);

    set_output_rpm(inst1, 500, 20.0);
    inst1.output.command.inverter_torque_limit[0] = 5;

    drive_command = test.getDrivetrainCommand(ControllerMode_e::MODE_0, TorqueLimit_e::TCMUX_LOW_TORQUE, mode_0_input_state);

    ASSERT_LT(drive_command.inverter_torque_limit[0], 3.5f);
    ASSERT_LT(drive_command.inverter_torque_limit[1], 12.5f);
    ASSERT_LT(drive_command.inverter_torque_limit[2], 12.5f);
    ASSERT_LT(drive_command.inverter_torque_limit[3], 12.5f);

    printf("torque 1: %.2f\n", drive_command.inverter_torque_limit[0]);
    printf("torque 2: %.2f\n", drive_command.inverter_torque_limit[1]);
    printf("torque 3: %.2f\n", drive_command.inverter_torque_limit[2]);
    printf("torque 4: %.2f\n", drive_command.inverter_torque_limit[3]);
}
