state_machine_test.h File Reference
#include <gtest/gtest.h>
#include <gmock/gmock.h>
#include "MCUStateMachine.h"
#include "fake_controller_type.h"

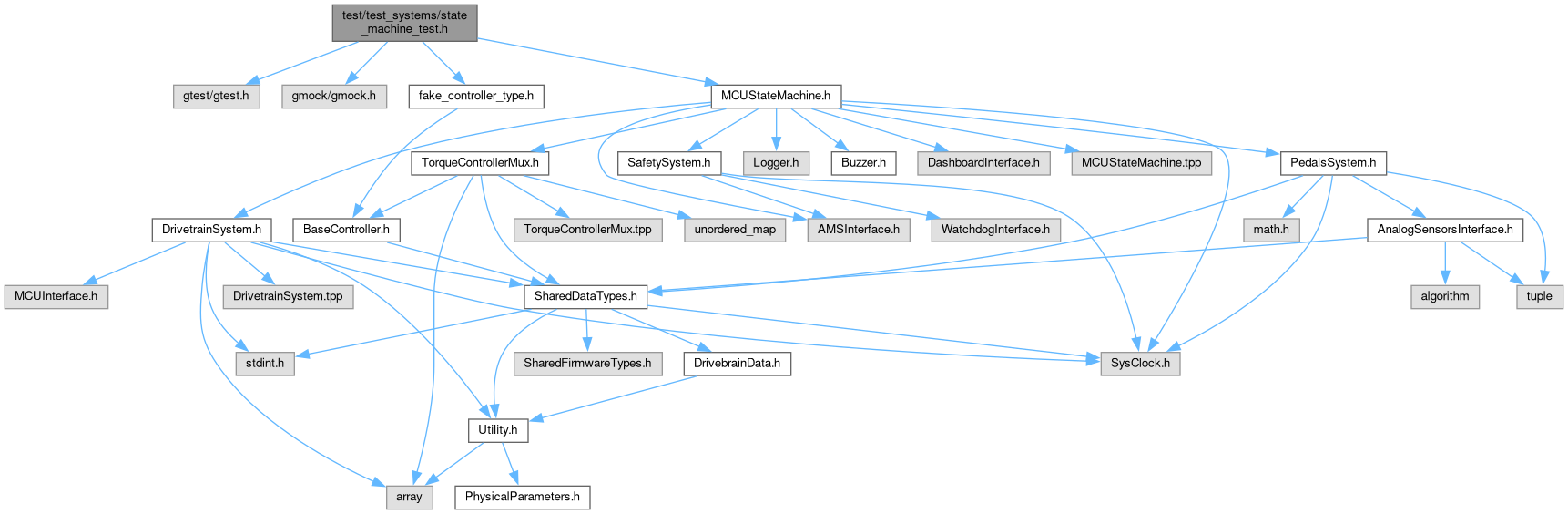

Include dependency graph for state_machine_test.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  DumbController

class  DrivetrainMock


Functions

SharedCarState_s dummy_state ({}, {}, {}, {}, {}, {}, {}, {})

void handle_startup (MCUStateMachine< DrivetrainMock > &state_machine, unsigned long sys_time, DrivetrainMock &drivetrain, PedalsSystem &pedals, DashboardInterface &dash_interface)

 TEST (MCUStateMachineTesting, test_state_machine_init_tick)

 TEST (MCUStateMachineTesting, test_state_machine_tractive_system_activation)

 TEST (MCUStateMachineTesting, test_state_machine_tractive_system_enabling)

 TEST (MCUStateMachineTesting, test_state_machine_ready_to_drive_alert)

 TEST (MCUStateMachineTesting, test_state_machine_ready_to_drive_alert_leaving)

 TEST (MCUStateMachineTesting, test_state_machine_rtd_state_transitions_to_ts_active)

 TEST (MCUStateMachineTesting, test_state_machine_rtd_state_transitions_to_ts_not_active)


Variables

DumbController c


Function Documentation

◆ dummy_state()

SharedCarState_s dummy_state ( {}  ,
{}  ,
{}  ,
{}  ,
{}  ,
{}  ,
{}  ,
{}
)

◆ handle_startup()

void handle_startup ( MCUStateMachine< DrivetrainMock > &  state_machine,
unsigned long  sys_time,
DrivetrainMock &  drivetrain,
PedalsSystem &  pedals,
DashboardInterface &  dash_interface
)

Definition at line 37 of file state_machine_test.h.

38{
39 // ticking without hv over threshold testing and ensuring the tractive system not active still
40 auto sys_time2 = sys_time;
41
42 drivetrain.hv_thresh_ = true;
43
44 state_machine.tick_state_machine(sys_time, dummy_state);
45 // hv going over threshold -> tractive system active
46 drivetrain.hv_thresh_ = true;
47 sys_time2 += 1;
48 state_machine.tick_state_machine(sys_time, dummy_state);
49 sys_time2 += 1;
50 dash_interface.start_button_status_ = true;
51 AnalogConversion_s pedals1_data;
52 pedals1_data.raw = 0;
53 pedals1_data.conversion = 0;
54 pedals1_data.status = AnalogSensorStatus_e::ANALOG_SENSOR_GOOD;
55 auto pedals2_data = pedals1_data;
56
57 AnalogConversion_s pedals3_data;
58 pedals3_data.raw = 3000;
59 pedals3_data.conversion = 1.0;
60 pedals3_data.status = pedals1_data.status;
61 auto pedals4_data = pedals3_data;
62 pedals.tick(SysTick_s{}, pedals1_data, pedals2_data, pedals3_data, pedals4_data);
63 // get to enabling inverters
64 state_machine.tick_state_machine(sys_time, dummy_state);
65}
MCUStateMachine::tick_state_machine
void tick_state_machine(unsigned long cm, const SharedCarState_s &current_car_state)
function to tick the state machine.
PedalsSystem::tick
void tick(const SysTick_s &tick, const AnalogConversion_s &accel1, const AnalogConversion_s &accel2, const AnalogConversion_s &brake)
overloaded tick function that runs the evaluation of the pedals system. evaluates brake using only mi...
Definition: PedalsSystem.cpp:12
drivetrain
DriveSys_t drivetrain
Definition: main.cpp:223
dummy_state
SharedCarState_s dummy_state({}, {}, {}, {}, {}, {}, {}, {})

◆ TEST() [1/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_init_tick
)

Definition at line 67 of file state_machine_test.h.

68{
69
70 int mock;
71 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
72 BuzzerController buzzer(50);
73 DrivetrainMock drivetrain;
74 PedalsSystem pedals({}, {});
75 DashboardInterface dash_interface;
76 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
77 SafetySystem ss(&ams, 0);
78 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
79 unsigned long sys_time = 1000;
80 EXPECT_EQ(state_machine.get_state(), CAR_STATE::STARTUP);
81 state_machine.tick_state_machine(sys_time, dummy_state);
82 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE);
83}
CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE
@ TRACTIVE_SYSTEM_NOT_ACTIVE
AMSInterface
this class is for interfacing with the AMS (accumulator management system)
Definition: AMSInterface.h:27
Controller
Base class for all controllers, which define drivetrain command containing different variations of
Definition: BaseController.h:18
buzzer
BuzzerController buzzer(BUZZER_ON_INTERVAL)
Definition: main.cpp:325
c
DumbController c
Definition: state_machine_test.h:35

◆ TEST() [2/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_ready_to_drive_alert
)

Definition at line 171 of file state_machine_test.h.

172{
173 int mock;
174 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
175 BuzzerController buzzer(50);
176 DrivetrainMock drivetrain;
177 PedalsSystem pedals({}, {});
178 DashboardInterface dash_interface;
179
180 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
181 SafetySystem ss(&ams, 0);
182 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
183
184 unsigned long sys_time = 1000;
185 handle_startup(state_machine, sys_time, drivetrain, pedals, dash_interface);
186 EXPECT_EQ(state_machine.get_state(), CAR_STATE::ENABLING_INVERTERS);
187
188 drivetrain.hv_thresh_ = true;
189 drivetrain.drivetrain_inited_ = true;
190 state_machine.tick_state_machine(sys_time, dummy_state);
191 EXPECT_EQ(state_machine.get_state(), CAR_STATE::WAITING_READY_TO_DRIVE_SOUND);
192 sys_time += 20;
193
194 dash_interface.buzzer = true;
195 state_machine.tick_state_machine(sys_time, dummy_state);
196
197 EXPECT_EQ(state_machine.get_state(), CAR_STATE::WAITING_READY_TO_DRIVE_SOUND);
198 sys_time += 35;
199
200 dash_interface.buzzer = false;
201 state_machine.tick_state_machine(sys_time, dummy_state);
202
203 EXPECT_EQ(state_machine.get_state(), CAR_STATE::READY_TO_DRIVE);
204}
CAR_STATE::WAITING_READY_TO_DRIVE_SOUND
@ WAITING_READY_TO_DRIVE_SOUND
CAR_STATE::ENABLING_INVERTERS
@ ENABLING_INVERTERS
handle_startup
void handle_startup(MCUStateMachine< DrivetrainMock > &state_machine, unsigned long sys_time, DrivetrainMock &drivetrain, PedalsSystem &pedals, DashboardInterface &dash_interface)
Definition: state_machine_test.h:37

◆ TEST() [3/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_ready_to_drive_alert_leaving
)

Definition at line 206 of file state_machine_test.h.

207{
208 int mock;
209 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
210 BuzzerController buzzer(50);
211 DrivetrainMock drivetrain;
212 PedalsSystem pedals({}, {});
213 DashboardInterface dash_interface;
214 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
215 ;
216
217 SafetySystem ss(&ams, 0);
218 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
219
220 unsigned long sys_time = 1000;
221
222 drivetrain.hv_thresh_ = true;
223 handle_startup(state_machine, sys_time, drivetrain, pedals, dash_interface);
224 EXPECT_EQ(state_machine.get_state(), CAR_STATE::ENABLING_INVERTERS);
225
226 drivetrain.drivetrain_inited_ = true;
227 state_machine.tick_state_machine(sys_time, dummy_state);
228
229 buzzer.activate_buzzer(sys_time);
230 EXPECT_EQ(state_machine.get_state(), CAR_STATE::WAITING_READY_TO_DRIVE_SOUND);
231 sys_time += 20;
232
233 drivetrain.hv_thresh_ = false;
234 state_machine.tick_state_machine(sys_time, dummy_state);
235
236 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE);
237}
BuzzerController::activate_buzzer
void activate_buzzer(unsigned long act_time)
Definition: Buzzer.cpp:8

◆ TEST() [4/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_rtd_state_transitions_to_ts_active
)

Definition at line 240 of file state_machine_test.h.

241{
242
243 int mock;
244 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
245 BuzzerController buzzer(50);
246 DrivetrainMock drivetrain;
247 drivetrain.drivetrain_error_ = false;
248 PedalsSystem pedals({}, {});
249 DashboardInterface dash_interface;
250 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
251 ;
252
253 SafetySystem ss(&ams, 0);
254 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
255
256 unsigned long sys_time = 1000;
257
258 handle_startup(state_machine, sys_time, drivetrain, pedals, dash_interface);
259 EXPECT_EQ(state_machine.get_state(), CAR_STATE::ENABLING_INVERTERS);
260
261 sys_time += 70;
262 drivetrain.drivetrain_inited_ = true;
263 drivetrain.hv_thresh_ = true;
264 state_machine.tick_state_machine(sys_time, dummy_state);
265 EXPECT_EQ(state_machine.get_state(), CAR_STATE::WAITING_READY_TO_DRIVE_SOUND);
266 sys_time += 70;
267 drivetrain.hv_thresh_ = true;
268
269 dash_interface.buzzer = true;
270 state_machine.tick_state_machine(sys_time, dummy_state);
271 dash_interface.buzzer = false;
272 state_machine.tick_state_machine(sys_time, dummy_state);
273
274 EXPECT_EQ(state_machine.get_state(), CAR_STATE::READY_TO_DRIVE);
275
276 state_machine.tick_state_machine(sys_time, dummy_state);
277
278 EXPECT_EQ(state_machine.get_state(), CAR_STATE::READY_TO_DRIVE);
279
280 drivetrain.drivetrain_error_ = true;
281
282 state_machine.tick_state_machine(sys_time, dummy_state);
283
284 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_ACTIVE);
285}
CAR_STATE::TRACTIVE_SYSTEM_ACTIVE
@ TRACTIVE_SYSTEM_ACTIVE

◆ TEST() [5/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_rtd_state_transitions_to_ts_not_active
)

Definition at line 287 of file state_machine_test.h.

288{
289
290 int mock;
291 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
292 BuzzerController buzzer(50);
293 DrivetrainMock drivetrain;
294 drivetrain.drivetrain_error_ = false;
295 PedalsSystem pedals({}, {});
296 DashboardInterface dash_interface;
297
298 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
299 ;
300
301 SafetySystem ss(&ams, 0);
302 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
303
304 unsigned long sys_time = 1000;
305
306 handle_startup(state_machine, sys_time, drivetrain, pedals, dash_interface);
307 EXPECT_EQ(state_machine.get_state(), CAR_STATE::ENABLING_INVERTERS);
308
309 sys_time += 70;
310 drivetrain.drivetrain_inited_ = true;
311 drivetrain.hv_thresh_ = true;
312 state_machine.tick_state_machine(sys_time, dummy_state);
313 EXPECT_EQ(state_machine.get_state(), CAR_STATE::WAITING_READY_TO_DRIVE_SOUND);
314 sys_time += 70;
315 drivetrain.hv_thresh_ = true;
316
317 dash_interface.buzzer = true;
318 state_machine.tick_state_machine(sys_time, dummy_state);
319 dash_interface.buzzer = false;
320 state_machine.tick_state_machine(sys_time, dummy_state);
321
322 EXPECT_EQ(state_machine.get_state(), CAR_STATE::READY_TO_DRIVE);
323
324 state_machine.tick_state_machine(sys_time, dummy_state);
325
326 EXPECT_EQ(state_machine.get_state(), CAR_STATE::READY_TO_DRIVE);
327
328 // drivetrain.drivetrain_error_ = true;
329
330 drivetrain.hv_thresh_ = false;
331 state_machine.tick_state_machine(sys_time, dummy_state);
332
333 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE);
334}

◆ TEST() [6/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_tractive_system_activation
)

Definition at line 85 of file state_machine_test.h.

86{
87 int mock;
88 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
89 BuzzerController buzzer(50);
90 DrivetrainMock drivetrain;
91 PedalsSystem pedals({}, {});
92 DashboardInterface dash_interface;
93
94 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
95
96 SafetySystem ss(&ams, 0);
97 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
98 unsigned long sys_time = 1000;
99
100 // ticking without hv over threshold testing and ensuring the tractive system not active still
101 state_machine.tick_state_machine(sys_time, dummy_state);
102 sys_time += 1;
103 drivetrain.hv_thresh_ = false;
104 state_machine.tick_state_machine(sys_time, dummy_state);
105 sys_time += 1;
106 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE);
107
108 // hv going over threshold -> tractive system
109 drivetrain.hv_thresh_ = true;
110 sys_time += 1;
111 state_machine.tick_state_machine(sys_time, dummy_state);
112 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_ACTIVE);
113
114 // hv going under thresh -> tractive system not active
115 drivetrain.hv_thresh_ = false;
116 sys_time += 1;
117 state_machine.tick_state_machine(sys_time, dummy_state);
118 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE);
119}

◆ TEST() [7/7]

TEST ( MCUStateMachineTesting  ,
test_state_machine_tractive_system_enabling
)

Definition at line 121 of file state_machine_test.h.

122{
123 unsigned long sys_time = 1000;
124
125 int mock;
126 AMSInterface ams(&mock, 0, 0, 0, 0, 0);
127 BuzzerController buzzer(50);
128 DrivetrainMock drivetrain;
129 PedalsSystem pedals({}, {});
130 DashboardInterface dash_interface;
131
132 TCMuxType tc_mux({static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c), static_cast<Controller *>(&c)}, {true, true, true, true, true});
133 ;
134 SafetySystem ss(&ams, 0);
135 MCUStateMachine<DrivetrainMock> state_machine(&buzzer, &drivetrain, &dash_interface, &pedals, &tc_mux, &ss);
136
137 // ticking without hv over threshold testing and ensuring the tractive system not active still
138 state_machine.tick_state_machine(sys_time, dummy_state);
139 sys_time += 1;
140 drivetrain.hv_thresh_ = false;
141 state_machine.tick_state_machine(sys_time, dummy_state);
142 sys_time += 1;
143 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_NOT_ACTIVE);
144
145 // hv going over threshold -> tractive system
146 drivetrain.hv_thresh_ = true;
147 sys_time += 1;
148 state_machine.tick_state_machine(sys_time, dummy_state);
149 EXPECT_EQ(state_machine.get_state(), CAR_STATE::TRACTIVE_SYSTEM_ACTIVE);
150
151 sys_time += 1;
152 dash_interface.start_button_status_ = true;
153
154 AnalogConversion_s pedals1_data;
155 pedals1_data.raw = 0;
156 pedals1_data.conversion = 0;
157 pedals1_data.status = AnalogSensorStatus_e::ANALOG_SENSOR_GOOD;
158 auto pedals2_data = pedals1_data;
159
160 AnalogConversion_s pedals3_data;
161 pedals3_data.raw = 3000;
162 pedals3_data.conversion = 1.0;
163 pedals3_data.status = pedals1_data.status;
164 auto pedals4_data = pedals3_data;
165 pedals.tick(SysTick_s{}, pedals1_data, pedals2_data, pedals3_data, pedals4_data);
166 state_machine.tick_state_machine(sys_time, dummy_state);
167 EXPECT_EQ(state_machine.get_state(), CAR_STATE::ENABLING_INVERTERS);
168}

Variable Documentation

◆ c

DumbController c

Definition at line 35 of file state_machine_test.h.

Generated by doxygen 1.9.5
