DrivebrainController Class Reference

Drivebrain Controller for fail-safe pass-through control of the car RESPONSIBILITIES AND DOCUMENTATION. More...

#include <DrivebrainController.h>

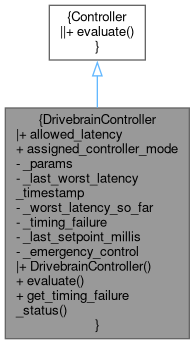

Inheritance diagram for DrivebrainController:

Collaboration diagram for DrivebrainController:

Public Member Functions
	DrivebrainController (unsigned long allowed_latency, ControllerMode_e assigned_controller_mode=ControllerMode_e::MODE_4)
	constructor for the drivebrain controller class More...
TorqueControllerOutput_s	evaluate (const SharedCarState_s &state)
	evaluate function for running the business logic More...
bool	get_timing_failure_status ()
	getter for the current status of whether or not the controller has had a timing failure during operation More...
virtual TorqueControllerOutput_s	evaluate (const SharedCarState_s &state)=0
	This mehod must be implemented by every controller in the Tc Muxer. This is called in the Muxer whenever the drivetrain command is obtained. TorqueControllerMux.cpp to see that in every tick of the system, the active controller must be ticked through this method. More...

Private Attributes
struct {
unsigned long   allowed_latency
ControllerMode_e   assigned_controller_mode
}	_params
unsigned long	_last_worst_latency_timestamp
int64_t	_worst_latency_so_far
bool	_timing_failure = false
unsigned long	_last_setpoint_millis = -1
TorqueControllerSimple	_emergency_control

Detailed Description

Drivebrain Controller for fail-safe pass-through control of the car RESPONSIBILITIES AND DOCUMENTATION.

this class is the "controller" that allows for pass-through control as commanded by the drivebrain. It also calculates the latency of the most recent input and checks to see if the most recent input is still valid and has not expired. If the input has expired then it switches over to the fail-safe control mode (MODE0) to allow for safe failing even while the car is driving so that we dont lose hard-braking capabilities.

This class can clear it's own fault by switching off of this operating mode and then swapping back to this operating mode. The fault clears the first time this controller gets evaluated while switch from the swapped-to mode back to this pass through mode.

latency measurement:

• the latency is measured by comparing the mcu systick's millis stamp within the most recent packet received from the drivebrain to the current systick millis. if the difference is too great, we swap to MODE0 control. The drivebrain's MCU timestamp comes from the most recent packet it received from the MCU as it contains the MCU systick's millis stamp at that packet's creation.

config:

• maximum allowed latency
• assigned controller mode (currently defaults to MODE4) inputs:
• the current car state from which it gets the latest drivebrain input, current controller mode and systick

Definition at line 52 of file DrivebrainController.h.

Constructor & Destructor Documentation

DrivebrainController()

DrivebrainController::DrivebrainController ( unsigned long  allowed_latency, ControllerMode_e  assigned_controller_mode = ControllerMode_e::MODE_4  )

inline

constructor for the drivebrain controller class

Parameters

allowed_latency	the allowed latency in milliseconds for which if the most recent packet has a timestamp older than this measure of time we fail safe
assigned_controller_mode	the controller mode that the drivebrain controller is assigned to. is required for evaluating whether or not we are active or not

Definition at line 59 of file DrivebrainController.h.

        : _emergency_control(1.0f, 1.0f)
    {
        _last_worst_latency_timestamp = 0;
        _worst_latency_so_far = -1;
        _params = {allowed_latency, assigned_controller_mode};
    }

Member Function Documentation

evaluate()

TorqueControllerOutput_s DrivebrainController::evaluate ( const SharedCarState_s &  state )

virtual

evaluate function for running the business logic

Parameters

state

the current state of the car

Returns

torque controller output that gets passed through the TC MUX

Implements Controller.

Definition at line 3 of file DrivebrainController.cpp.

{

    auto sys_tick = state.systick;
    auto db_input = state.db_data;

    // cases for timing_failure:
    // 1 if the last_receive_time_millis < 0, then we have not received any messages from the db (initialized at -1 in constructor)
    bool no_messages_received = db_input.last_receive_time_millis < 0;

    // 2 if the DB_prev_MCU_recv_millis < 0, then the drivebrain has not received a time from the MCU
    // (meaning that the MCU is not sending properly or the drivebrain is not receiving properly or it has
    // yet to receive from the MCU yet)
    bool drivebrain_has_not_received_time = (db_input.DB_prev_MCU_recv_millis < 0);
    // Serial.println("uh");
    // 3 if the time between the current MCU sys_tick.millis time and the last millis time that the drivebrain received is too high
    bool message_too_latent = (::abs((int)(sys_tick.millis - db_input.DB_prev_MCU_recv_millis)) > (int)_params.allowed_latency);
    if((sys_tick.millis - _last_worst_latency_timestamp) > 5000)
    {
        _last_worst_latency_timestamp = sys_tick.millis;
        _worst_latency_so_far = -1;
    }

    if( (sys_tick.millis - db_input.DB_prev_MCU_recv_millis) > _worst_latency_so_far)
    {
        _worst_latency_so_far = (sys_tick.millis - db_input.DB_prev_MCU_recv_millis);
    }


    bool timing_failure = (message_too_latent || no_messages_received || drivebrain_has_not_received_time);

    // only in the case that our speed is low enough (<1 m/s) do we want to clear the fault

    bool is_active_controller = state.tc_mux_status.active_controller_mode == _params.assigned_controller_mode;

    if ((!is_active_controller) && (!timing_failure))
    {
        // timing failure should be false here
        _timing_failure = false;
    }

    TorqueControllerOutput_s output;
    if (!timing_failure && (!_timing_failure))
    {
        _last_setpoint_millis = db_input.last_receive_time_millis;

        db_input.speed_setpoints_rpm.copy_to_arr(output.command.speeds_rpm);
        db_input.torque_limits_nm.copy_to_arr(output.command.inverter_torque_limit);
    }
    else
    {
        _timing_failure = true;
        // output.command = {{0.0f}, {0.0f}};
        output = _emergency_control.evaluate(state);
    }
    return output;
}

get_timing_failure_status()

bool DrivebrainController::get_timing_failure_status ( )

inline

getter for the current status of whether or not the controller has had a timing failure during operation

Returns

bool of status

Definition at line 75 of file DrivebrainController.h.

{ return _timing_failure; }

Member Data Documentation

_emergency_control

TorqueControllerSimple DrivebrainController::_emergency_control

private

Definition at line 88 of file DrivebrainController.h.

_last_setpoint_millis

unsigned long DrivebrainController::_last_setpoint_millis = -1

private

Definition at line 87 of file DrivebrainController.h.

_last_worst_latency_timestamp

unsigned long DrivebrainController::_last_worst_latency_timestamp

private

Definition at line 84 of file DrivebrainController.h.

struct { ... } DrivebrainController::_params

_timing_failure

bool DrivebrainController::_timing_failure = false

private

Definition at line 86 of file DrivebrainController.h.

_worst_latency_so_far

int64_t DrivebrainController::_worst_latency_so_far

private

Definition at line 85 of file DrivebrainController.h.

allowed_latency

unsigned long DrivebrainController::allowed_latency

Definition at line 80 of file DrivebrainController.h.

assigned_controller_mode

ControllerMode_e DrivebrainController::assigned_controller_mode

Definition at line 81 of file DrivebrainController.h.

---

The documentation for this class was generated from the following files:

• lib/systems/include/DrivebrainController.h
• lib/systems/src/DrivebrainController.cpp
